TPD5E003DPFR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPD5E003DPFR
Datasheet:
Description:

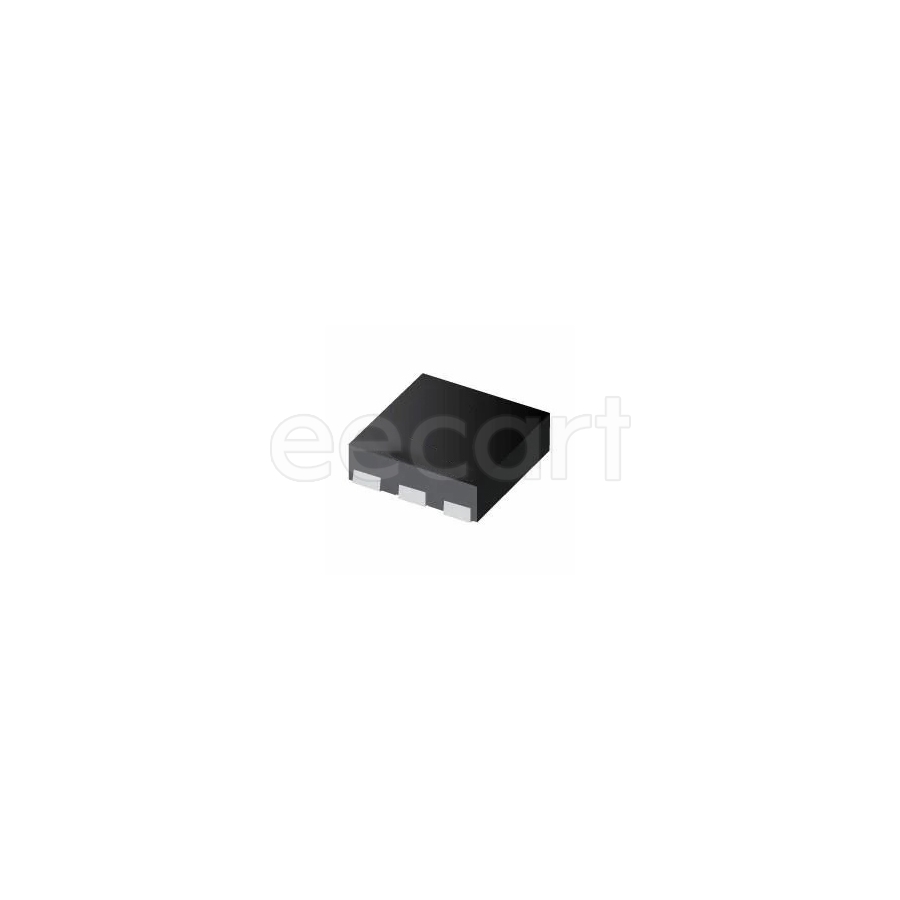

ESD and Circuit Protection ICs X2SON-6 SMD/SMT Working Voltage:5 V Breakdown Voltage:6 V 40 W 10 pF
| Parameter | Value |
|---|---|
| Capacitance | 8.4 pF |
| Length | 1 mm |
| Width | 1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Composition(Kit Type) | Zener |
| Height | 400 µm |
| Packaging | Reel |
| Thickness | 370 µm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Polarity | Unidirectional |
| Working Voltage | 5 V |
| Operating Supply Voltage | 5.5 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Max Power Dissipation | 40 W |
| Peak Pulse Current | 10 A |
| Number of Channels | 5 |
| Breakdown Voltage | 6 V |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 6 V |
| Reverse Standoff Voltage | 5 V |
| Clamping Voltage | 13 V |
| Peak Pulse Power | 40 W |
| Power Line Protection | No |
| Number of Unidirectional Channels | 5 |
| Number of Bidirectional Channels | 4 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Voltage ESD Contact | 8 kV |
| Voltage ESD Air Gap | 15 kV |
| Diode Capacitance | 10 pF |
Stock: 38
Distributors
pcbx
pcbxUnit Price$0.37824
Ext.Price$0.37824
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.37824 | $0.37824 |
| 10 | $0.30144 | $3.01440 |
| 25 | $0.27714 | $6.92850 |
| 50 | $0.25480 | $12.74000 |
| 100 | $0.23426 | $23.42600 |
| 300 | $0.22911 | $68.73300 |
| 500 | $0.22407 | $112.03500 |
| 1000 | $0.21815 | $218.15000 |
